Ceramics are widely used across electrical appliances, heating devices, industrial machinery and consumer electronics. But under the surface, not all ceramics behave the same. Among many technical ceramic families, steatite ceramic stands out for its electrical insulation, thermal shock resistance, and low dielectric loss—properties that ordinary ceramics cannot easily match.

Many engineers choosing between steatite ceramic and traditional alumina-based or clay-based ceramics often ask the same question: Which one is actually better for my application?

Below is a technical breakdown using mechanical, thermal, and electrical data to show where steatite ceramic excels—and where conventional ceramics still hold value.

1. What Exactly Is Steatite Ceramic?

Steatite ceramic is a magnesium-silicate–based technical ceramic (MgSiO₃) manufactured through high-temperature sintering.
Key characteristics:

• Low dielectric loss

• Excellent electrical insulation

• Moderate mechanical strength

• High thermal shock stability

• Good machinability before sintering

Because of these traits, it is commonly used in:

• heating resistance steatite ceramic cap

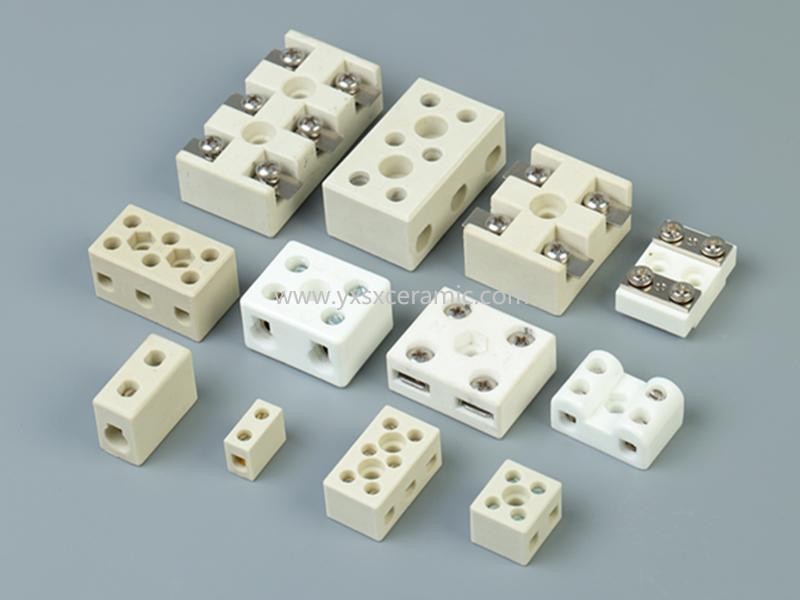

• steatite ceramic terminal block

• insulator steatite ceramic tube

• Heating elements

• Lighting components

• Household appliance insulation

• Electronic connectors

Ordinary ceramics such as clay ceramic or porcelain are designed more for structural or decorative use rather than engineering applications.

2. Steatite vs. Ordinary Ceramics: Key Property Comparison

Below is a technical comparison using standard material testing data:

Table 1: Basic Material Properties

Key insight：
Steatite ceramic provides almost double the electrical insulation performance and significantly higher mechanical strength than ordinary ceramics.

3. Thermal Performance Differences

Steatite Ceramic Thermal Behavior

Steatite has low thermal expansion (≈ 7.5 ×10⁻⁶ /K), which makes it ideal for thermal cycling or environments where heating elements run continuously.

A typical Heating Resistance Steatite Ceramic Cap can withstand:

• Instant temperature jumps of 200–400°C

• Continuous operating temperatures above 900°C

• Long-term contact with nichrome or kanthal wire

Ordinary Ceramic Thermal Behavior

Ordinary ceramic tends to crack under fast thermal shock because its thermal expansion rate is much higher (≈ 12–14 ×10⁻⁶ /K).

Thermal Shock Test Comparison：

This is a key reason why electrical manufacturers do not use ordinary ceramics for heater caps, ignition systems, or terminal blocks.

4. Electrical Insulation Performance

One of the biggest differences lies in dielectric properties.
For example, a Steatite Ceramic Terminal Block can maintain stable insulation even under:

• High humidity

• High voltage

• High heat

• Continuous electrical load

Electrical Breakdown Strength Comparison

Steatite’s superior insulation is crucial in:

• Power devices

• High-frequency modules

• Household appliances

• Microwave-safe components

• Heat-generating systems

Ordinary ceramics are not stable enough for these environments.

5. Mechanical Strength & Durability

Although steatite Ceramic Part is not as strong as Alumina Ceramic Part, it is far stronger than clay-based ceramics.

Table 2: Mechanical Comparison

Steatite also resists surface wear from assembly, screw fastening, and wire installation—important for components like:

• Insulator Steatite Ceramic Tube

• Ceramic spacers

• Heating element supports

Ordinary ceramics typically crumble or chip under the same conditions.

6. Chemical & Moisture Resistance

Steatite ceramic has a dense microstructure after sintering. This provides:

• Minimal water absorption (< 0.1%)

• Strong resistance to alkaline environments

• Stability against oils and common industrial solvents

Ordinary ceramics can absorb up to 2–5% moisture, which impacts both insulation and dimensional stability.

7. Typical Applications: When Should You Use Each One?

Steatite Ceramic—Best for:

• Heater assemblies

• Electric cookers

• Electric iron components

• High-voltage insulation

• Terminal blocks & connector bases

• Precision industrial tubes & sleeves

• Gas appliance igniters

Its ability to integrate heat, insulation, and stability makes it ideal for:

• heating resistance steatite ceramic cap
• steatite ceramic terminal block
• insulator steatite ceramic tube

Ordinary Ceramics—Best for:

• Tableware

• Tiles

• Decorative objects

• Low-temperature insulators

• General structural components

They remain valuable where aesthetics and low cost matter more than high-performance functionality.

9. Why Many Manufacturers Prefer Steatite Ceramic Today

Industries such as home appliances, heating equipment, automotive ignition, and industrial machinery have increasingly replaced ordinary ceramics with steatite because it offers:

• Higher operating temperature

• Stronger insulation

• Lower dielectric loss

• Longer operational life

• Better resistance to thermal cycling

• More predictable performance

It also supports complex shapes during green machining, helping reduce tooling costs for custom Ceramic Spare Parts such as:

• Special ceramic caps

• Multi-hole tubes

• Terminal blocks

• Mounting bases
