Cordierite ceramic plug is a custom‑shaped refractory component made of cordierite (magnesium aluminosilicate, chemical formula: 2MgO·2Al₂O₃·5SiO₂), one typical form of cordierite insulating / heat‑resistant ceramic parts.
This ceramic plug is specially designed for high‑temperature working environments with frequent heating‑cooling cycles. Thanks to its ultra‑low coefficient of thermal expansion, it provides outstanding thermal‑shock resistance, which prevents cracking under rapid temperature fluctuation, the most important advantage compared with alumina or steatite ceramic plugs.

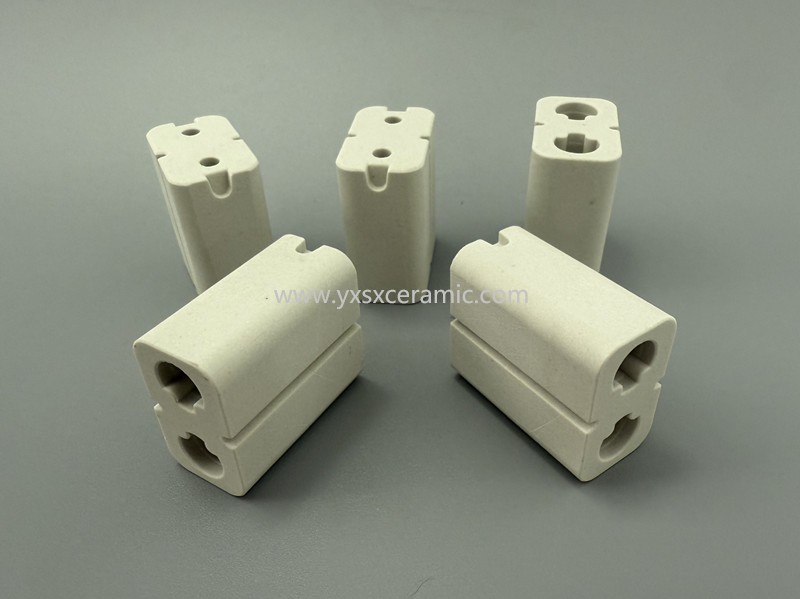

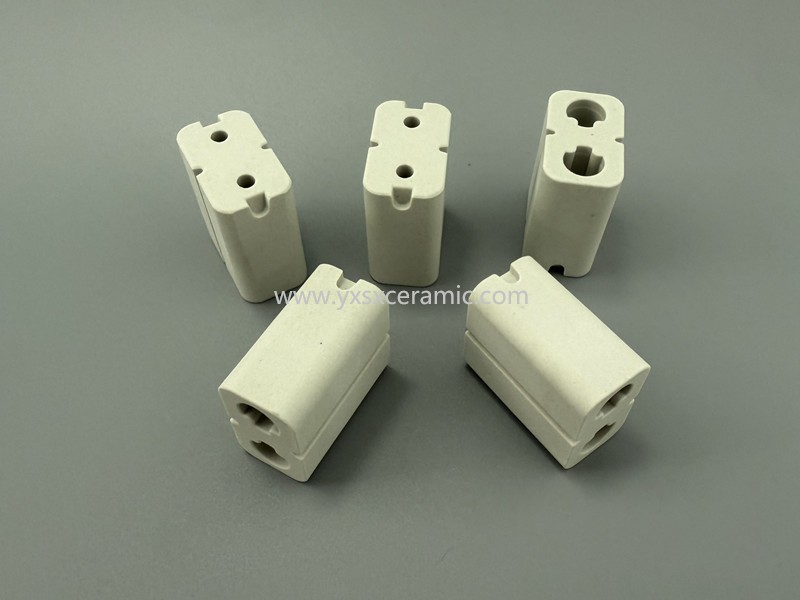

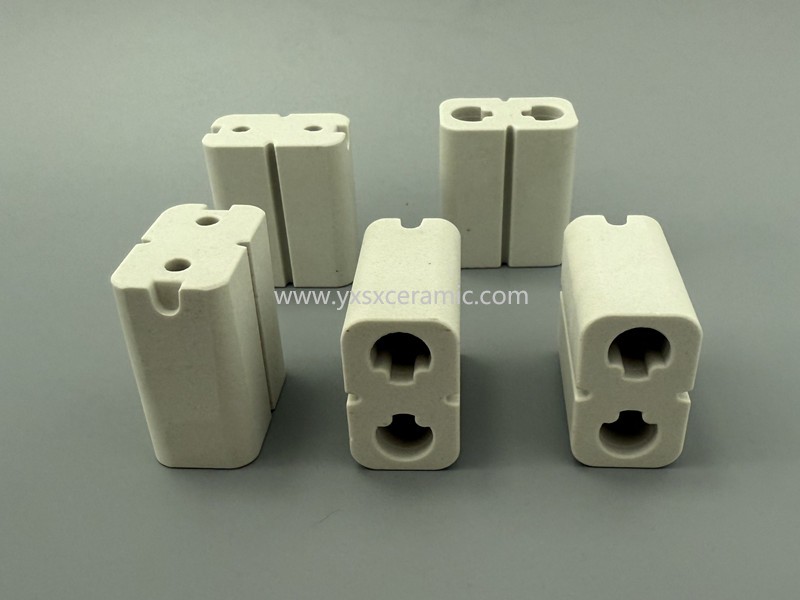

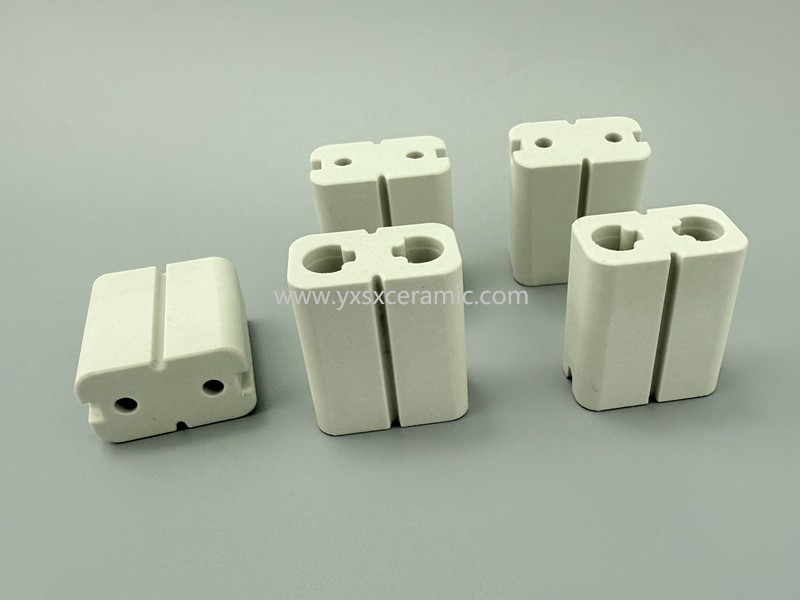

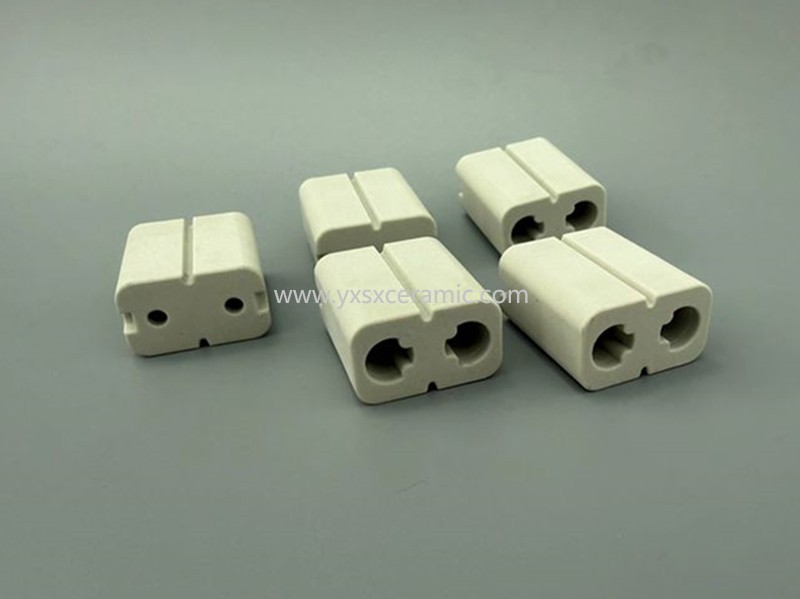

Cordierite Ceramic Plug
Made of magnesium aluminosilicate, cordierite ceramic plugs offer outstanding thermal‑shock resistance due to low CTE. Good electrical insulation and high‑temperature dimensional stability up to 1300°C. Custom geometries are available for burners, thermocouple assemblies and kiln supporting applications.
Technical Parameters
| Item | Unit | Zirconia ceramic | 99% alumina ceramic | 96% alumina ceramic | 95% alumina ceramic | Steatite ceramic | Mullite ceramic | Cordierite ceramic |
| Bulk density | g/cm3 | 6 | 3.8 | 3.7 | 3.6 | 2.8 | 2.2 | 2.3 |
| Water absorption | % | 0 | 0 | 0 | 0 | 0 | 12 | 12 |
| Thermal Conductivity | (w/m.k) | 10 | 19-30 | 16-28 | 14-24 | 2-3 | 2-6 | 1.3-1.8 |
| Resistance to thermal shock,Minimum | TK? | 70 | 150 | 140 | 140 | 80 | 150 | 300 |
| Withstand voltage,Minimum | KV | 15 | 20 | 18 | 18 | 20 | 25 | - |
| Flexural strength | Mpa | 1000 | 300 | 280 | 240 | 120 | 120 | 30 |
| Sintering temperature | ℃ | 1500 | 1670 | 1600 | 1600 | 1250 | 1250 | 1250 |
| Maximum working temperature | ℃ | 1200 | 1500 | 1200 | 1200 | 800 | 1000 | 1000 |
Application
Typical Applications of the ceramic plug socket cups
• Insulating plug / stopper for burner, gas ignition assembly
• Thermocouple insulating plug and temperature‑probe fixture
• Locating plug & spacer for kiln furniture, furnace support
• Stud welding ceramic ferrule / plug
• Heat‑resistant blocking component for heating equipment
Advantages
Key Features & Advantages of the cordierite ceramic plug socket cups
1 Excellent thermal shock resistance
Low CTE (typically 1–3 ×10⁻⁶ /°C). It can survive repeated sharp temperature changes without fracture.
2. Good electrical insulation
High volume resistivity and stable dielectric property, suitable for insulation and isolation in heating assemblies, sensor fixtures or burner systems.
3. High‑temperature dimensional stability
Max continuous service temperature up to 1100–1300°C. Minimal deformation under long‑term heat load.
4. Cost‑effective refractory solution
Lower material cost than high‑purity alumina when thermal cycling resistance is the primary requirement.
5. Customizable geometry
We can produce various plug shapes, inner holes, steps, grooves by dry pressing, extrusion or isostatic pressing according to customer drawings.
Certificate
FAQ
1. How can you get quotation of the ceramic plugs?
Please kindly send me your drawing with technic requirement and demand quantity.
If you don't have the drawing, please kindly courier samples to us. we will quote our best price in 24 hours.
2. How can you get alumina ceramic socket cups samples?
We can supply free samples if we have them in stock. If we haven't produce the products, we can supply some free samples after getting tool fee. Please take note that the courier fee should be at destination.
3. What’s the lead-time for samples and batch orders of the cordierite ceramic cups plugs?
It is 18days for supplying samples. It is around 25days for batch orders.
4. Can I visit you?
Sure. If you're a volume buyer and would like to visit our in-house products and production line of ceramic smoking pipes, please contact us to make an appointment.
