ceramic washer

99.5% alumina ceramic thrust washer shenxing ceramic shim

Ceramic thrust washers are flat ring-shaped wear-resistant components mainly manufactured from high-purity alumina ceramic or zirconia ceramic. They serve as axial load bearing parts to reduce friction, isolate metal contact and resist abrasion in rotating machinery. Our ceramic thrust washers adopt two mainstream high-performance ceramic raw materials: 95%/99.7% alumina ceramic and 3Y-TZP zirconia ceramic. Both materials own outstanding mechanical properties. Alumina type balances cost and wear resistance for general working conditions; zirconia ceramic delivers higher toughness and impact resistance for heavy-load working scenes.

Hot Tags : ceramic sealing shim ceramic washer alumina ceramic ring alumina ceramic thrust washer ceramic washer plate 99% alumina ceramic
View More

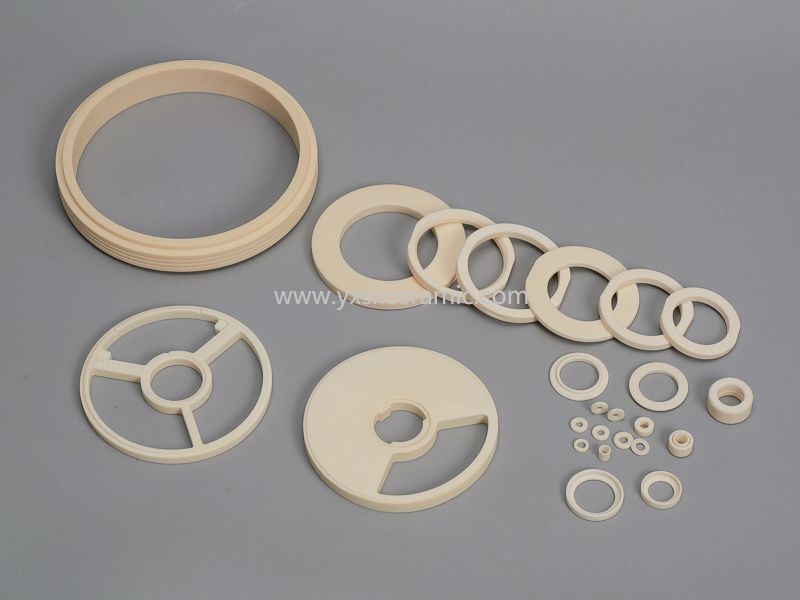

yixing shenxing ceramic disc washer ceramic valve plate for pump

Alumina Ceramic Valve Plate (also known as alumina ceramic valve disc) is a high-performance fluid control component manufactured from high-purity aluminum oxide (Al₂O₃) ceramic material. It serves as a critical sealing and flow-regulating part in various industrial valves, replacing traditional metal, plastic, or rubber valve plates. Material & Specifications • Raw Material: High-purity alumina ceramic (typically 95%–99.9% Al₂O₃) • Density: 3.75–3.95 g/cm³ • Hardness: Rockwell hardness HRC 90 (second only to diamond) • Flexural Strength: 300–630 MPa • Compressive Strength: 2000–4000 MPa • Surface Roughness: Ra ≤ 0.1–0.8 μm (mirror-polished) • Temperature Resistance: Operating range -200°C to +1600°C; melting point ~2050°C • Standard Sizes: Customizable outer diameter (up to 300 mm) and thickness

Hot Tags : ceramic washer ceramic valve plate ceramic disc alumina ceramic plate ceramic water pump ceramic shim
View More
