shenxing ceramic High Temperature Alumina Ceramic train shunt resistance ceramic insulator

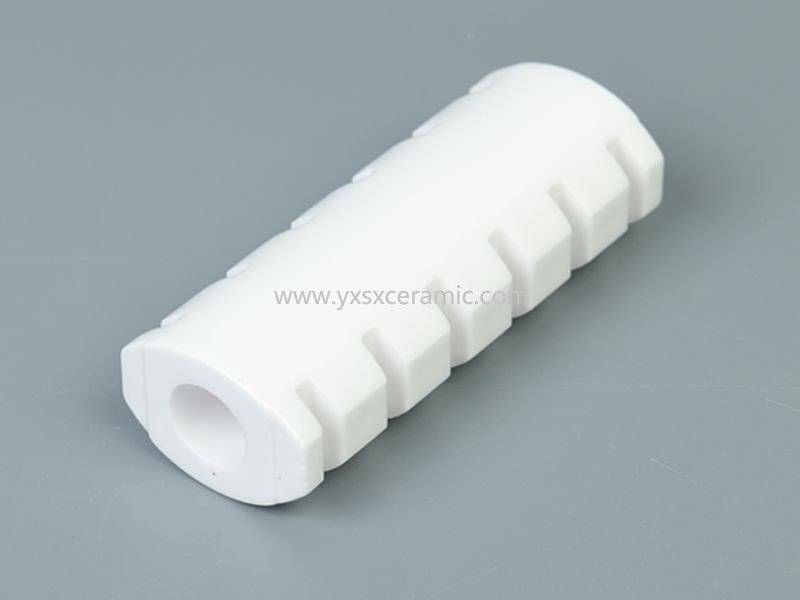

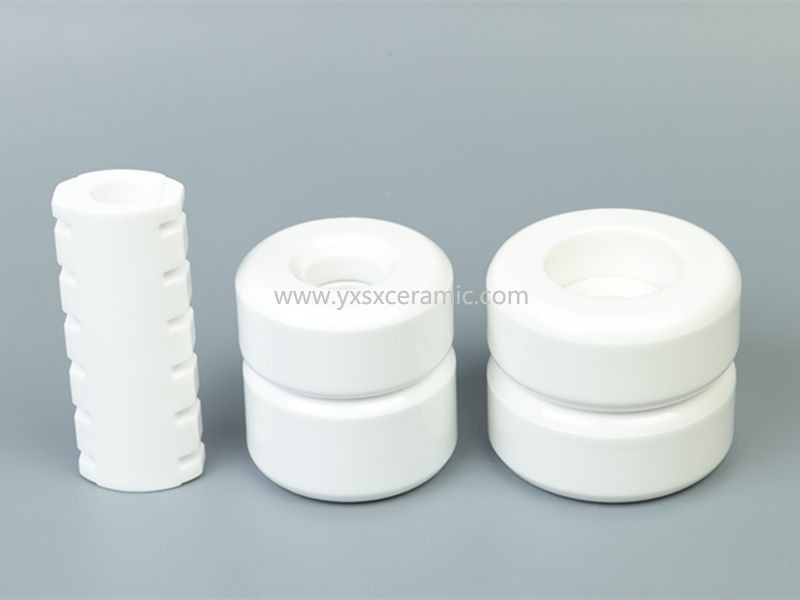

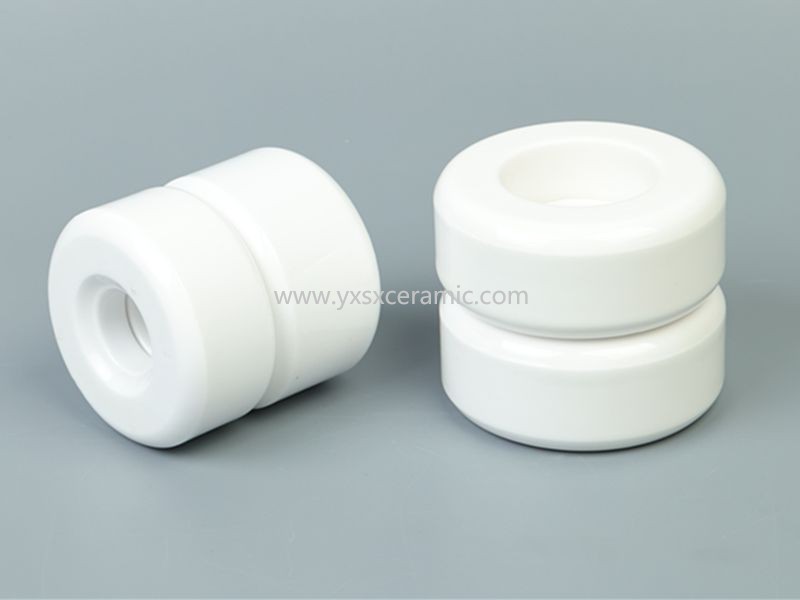

The train shunt resistance ceramic insulator is a specialized electrical component designed for railway systems, integrating a high-insulation ceramic base with a shunt resistance element. It ensures safe, stable current shunting (for overload protection or signal transmission) while isolating the shunt from the train’s metal chassis, critical for maintaining reliable operation of train traction systems, braking circuits, and signal devices.

Technical Parameters

Application

• Ceramic Base Material: High-purity alumina ceramic (Al₂O₃ content ≥95%) or steatite ceramic (for cost-sensitive applications), selected for railway-grade insulation and mechanical durability.

• Electrical Performance:

• Insulation Strength: ≥15 kV/mm (at 25°C, 50Hz) to prevent leakage current between shunt and chassis.

• Volume Resistivity: ≥10¹⁴ Ω·cm (dry condition), ensuring effective electrical isolation.

• Shunt Resistance Range: 10 mΩ–10 Ω (customizable per train circuit requirements), with resistance tolerance ≤±5%.

• Mechanical & Environmental Resistance:

• Compressive Strength: ≥800 MPa (alumina grade) to withstand vibration and mechanical impact during train operation.

• Operating Temperature: -40°C to +120°C (adapts to extreme cold/hot railway environments).
