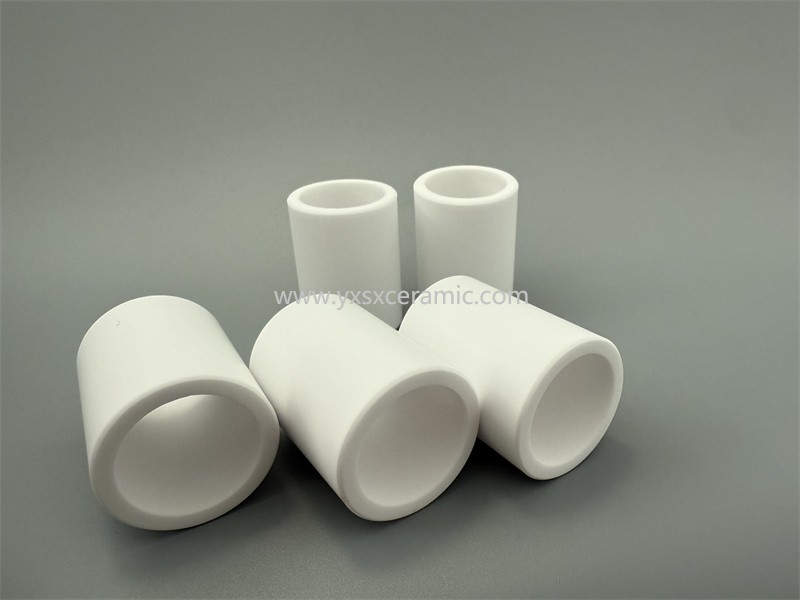

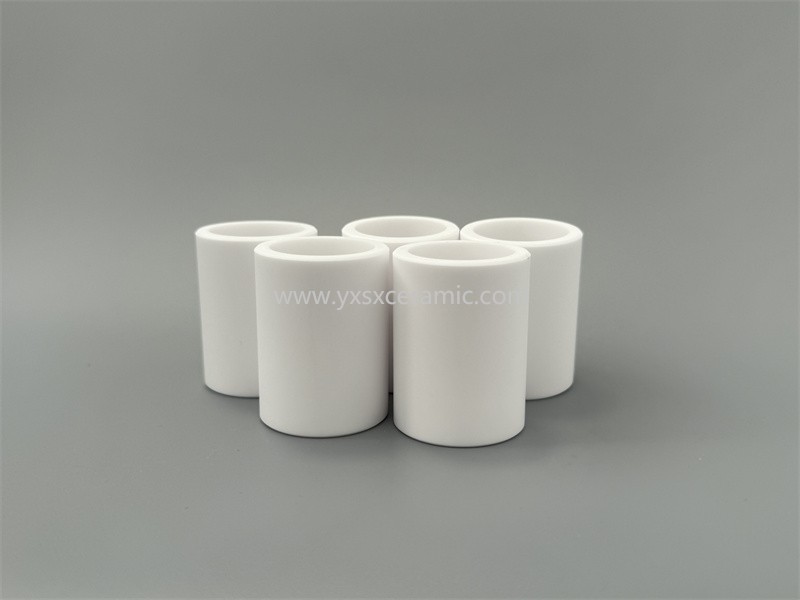

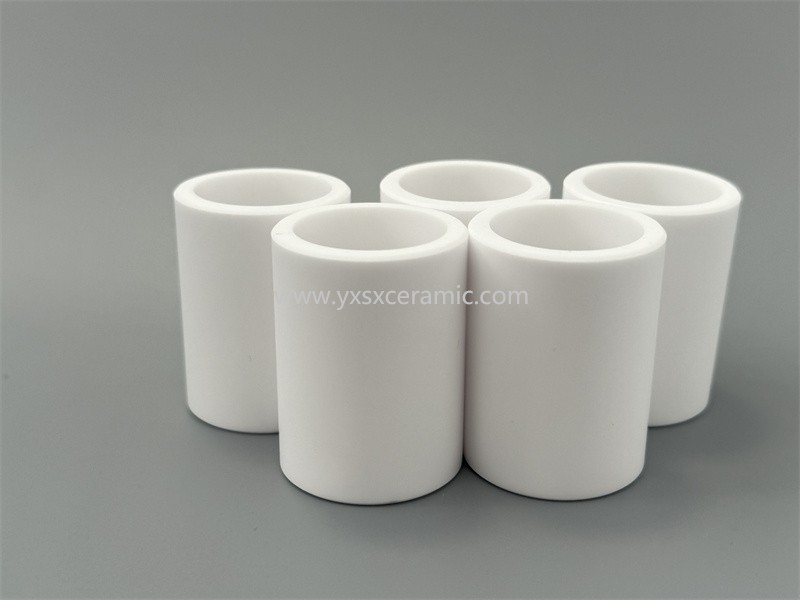

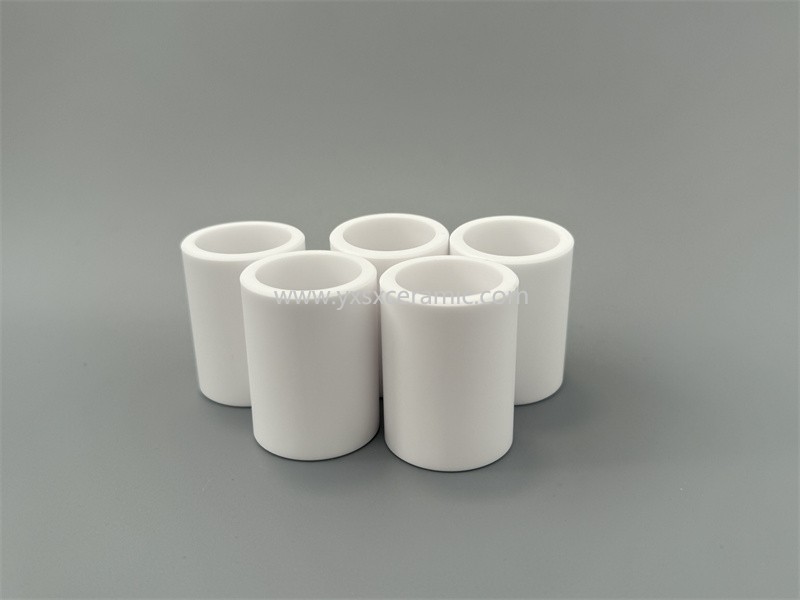

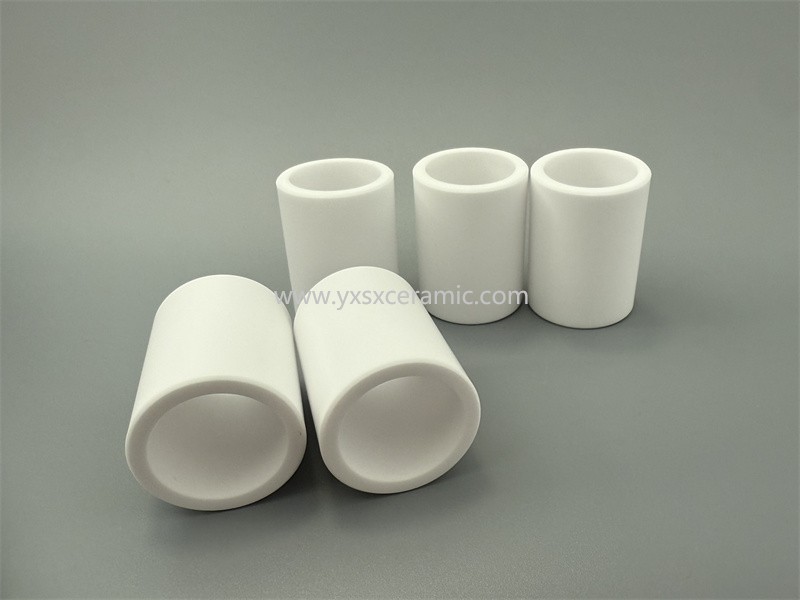

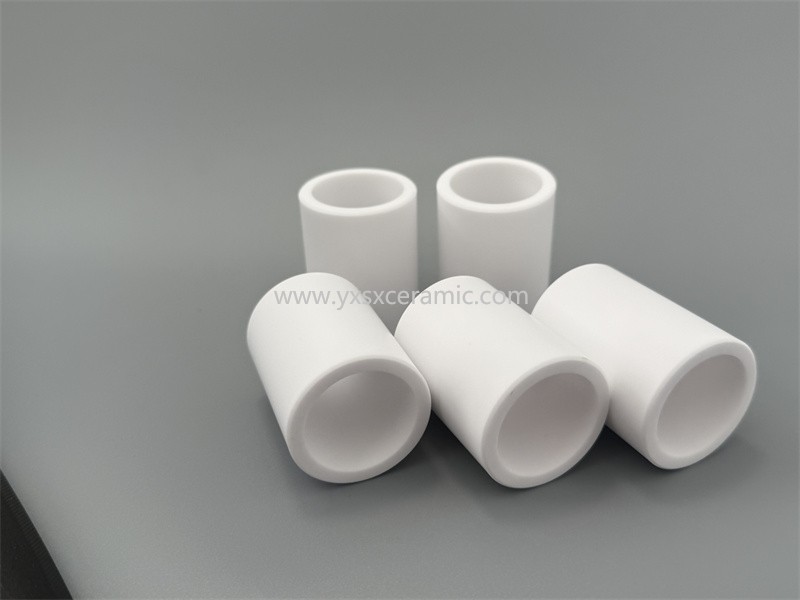

shenxing ceramic 95% alumina ceramic fuse tube body

An alumina ceramic fuse tube is a type of fuse device with an alumina ceramic tube as the shell . It is mainly used for overcurrent protection in circuits.

Application scenarios ：Widely used in high-current/high-voltage equipment such as power systems and industrial equipment, as well as in explosion-proof required places such as aerospace, petrochemical, and mines. It is also used in automotive electronics and household appliances to protect circuits.

Order(MOQ) :
1000
Payment :
T/T

Description

• Working principle ：Based on the thermal effect, when the circuit current exceeds the rated value, the fusing element generates heat due to resistance, and the temperature rises. When the melting point is reached, the metal fusing element melts to cut off the circuit. At the same time, the ceramic tube and the filler quickly absorb the arc energy to prevent explosion or spark.

• Core characteristics ：It has the characteristics of high temperature resistance, explosion prevention, high insulation, and strong breaking capacity. The alumina ceramic material can withstand high temperatures (up to 400°C), and there is no risk of explosion during fusing. It can also safely disconnect large currents, protecting equipment from damage.

Technical Parameters

Item	Unit	Zirconia ceramic	99% alumina ceramic	96% alumina ceramic	95% alumina ceramic	Steatite ceramic	Mullite ceramic	Cordierite ceramic
Bulk density	g/cm3	6	3.8	3.7	3.6	2.8	2.2	2.3
Water absorption	%	0	0	0	0	0	12	12
Thermal Conductivity	(w/m.k)	10	19-30	16-28	14-24	2-3	2-6	1.3-1.8
Resistance to thermal shock,Minimum	TK?	70	150	140	140	80	150	300
Withstand voltage,Minimum	KV	15	20	18	18	20	25	-
Flexural strength	Mpa	1000	300	280	240	120	120	30
Sintering temperature	℃	1500	1670	1600	1600	1250	1250	1250
Maximum working temperature	℃	1200	1500	1200	1200	800	1000	1000

Application

Specifically used for high-temperature and high-voltage insulation parts, circuit substrates, high-temperature devices, etc. As the main representative of precision ceramic materials, it is widely used in industries such as semiconductors, petrochemicals, and electronics.

Advantages

1. we support OEM and ODM;
2. We have a professional R&D team and technical support;
3. We provide real-time logistics update information;
4. We support 24-hour online service;
5. We support T/T,L/c payment;
6. We have a professional QC team to check the quality before delivery.

Certificate

FAQ

1. How can you get quotation?
Please kindly send me your drawing with technic requirement and demand quantity.
If you don't have the drawing, please kindly courier samples to us. we will quote our best price in 24 hours.

2. How can you get samples?
We can supply free samples if we have them in stock. If we haven't produce the products, we can supply some free samples after getting tool fee. Please take note that the courier fee should be at destination.

3. What’s the lead-time for samples and batch orders?
It is 18days for supplying samples. It is around 25days for batch orders.

4. Can I visit you?
Sure. If you're a volume buyer and would like to visit our in-house products and production line, please contact us to make an appointment.
