shenxing ceramic C221 steatite ceramic base for resistor

Alumina ceramic rod has excellent electrical insulation properties, which can effectively prevent current leakage. It is often used as a core material in resistors, which can reduce resistor noise and provide more stable resistance, enabling resistors to ensure high - power operation while achieving a higher integration density. The alumina ceramic rod is not a passive holder; it is an active, functional part of the resistor's design: ​​Electrical Insulating Substrate:​​ Its primary function is to provide a base that is an excellent ​​electrical insulator​​. The resistive wire (e.g., Nichrome, Kanthal) is wound around this rod, and the alumina prevents the coils from shorting to each other or to any external ground. ​​Mechanical Core:​​ It provides the rigid structural backbone for the resistor, giving it mechanical strength and stability. It must resist bending, cracking, and vibration during operation. ​​Heat Sink / Thermal Manager:​​ This is a critical role. While the resistive wire heats up, the alumina rod absorbs that heat. Alumina has good thermal conductivity for a ceramic, which allows it to draw heat away from the wire, spread it along its length, and dissipate it into the surrounding air or to the resistor's outer casing. This prevents "hot spots" and allows the resistor to handle higher power levels.

Common Resistor Types Using Steatite Cases steatite ceramics in these resistor types: ​​Wirewound Resistors:​​ ​​Construction:​​ A resistance wire (like Nichrome) is wound around a steatite ceramic rod or tube. The steatite body provides the core for winding. For higher power ratings, the assembly is often placed inside a larger steatite tube or case, with the space filled with a silicone cement for better heat transfer and environmental protection. ​​Appearance:​​ Typically a white, brown, or grayish cylindrical body with metal end caps and axial leads.   ​​Power Film Resistors:​​ Similar to wirewound, but a resistive film is applied to a steatite rod instead of a wire.   ​​Cement Resistors:​​ A specific type of wirewound resistor where the steatite case is packed with heat-conducting, non-flammable cement to enhance power rating and protect the element.

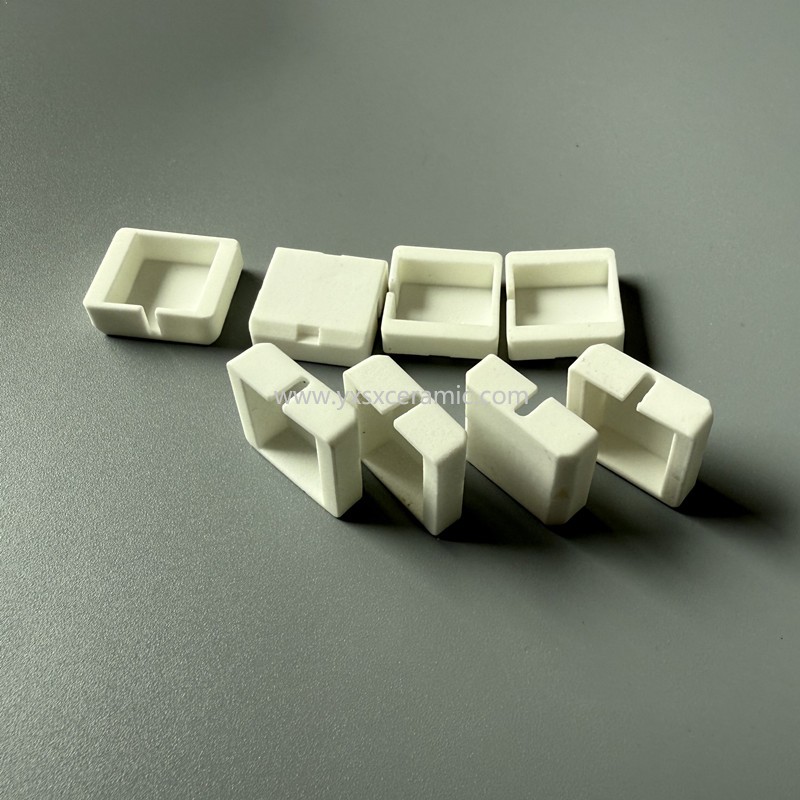

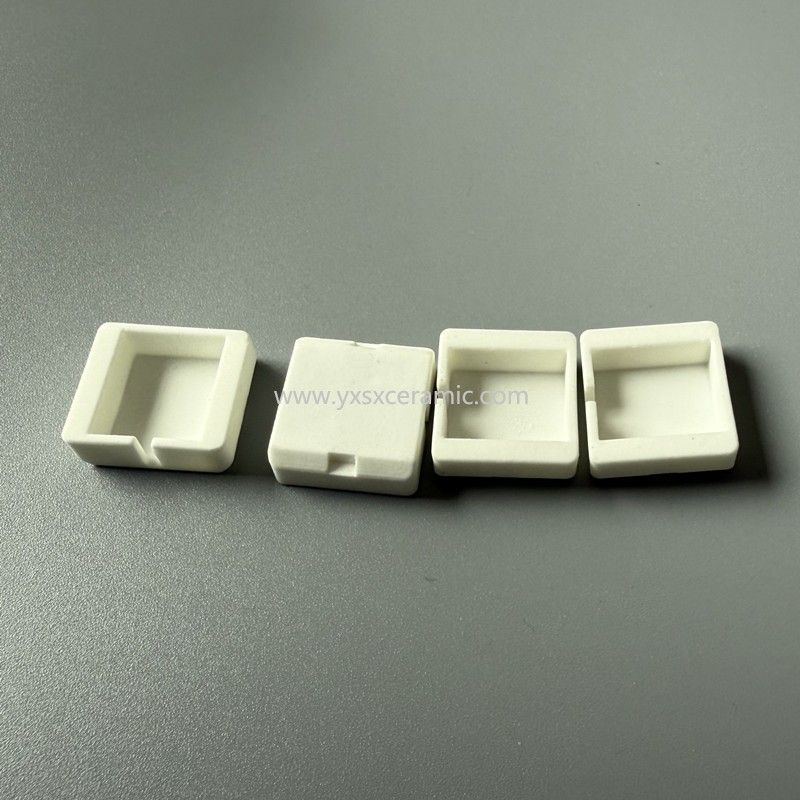

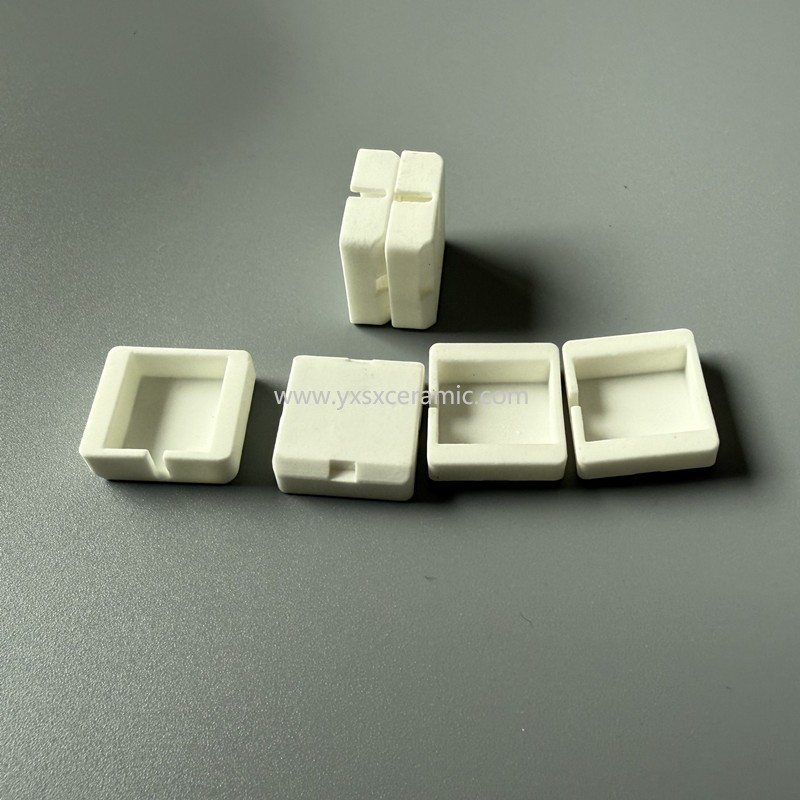

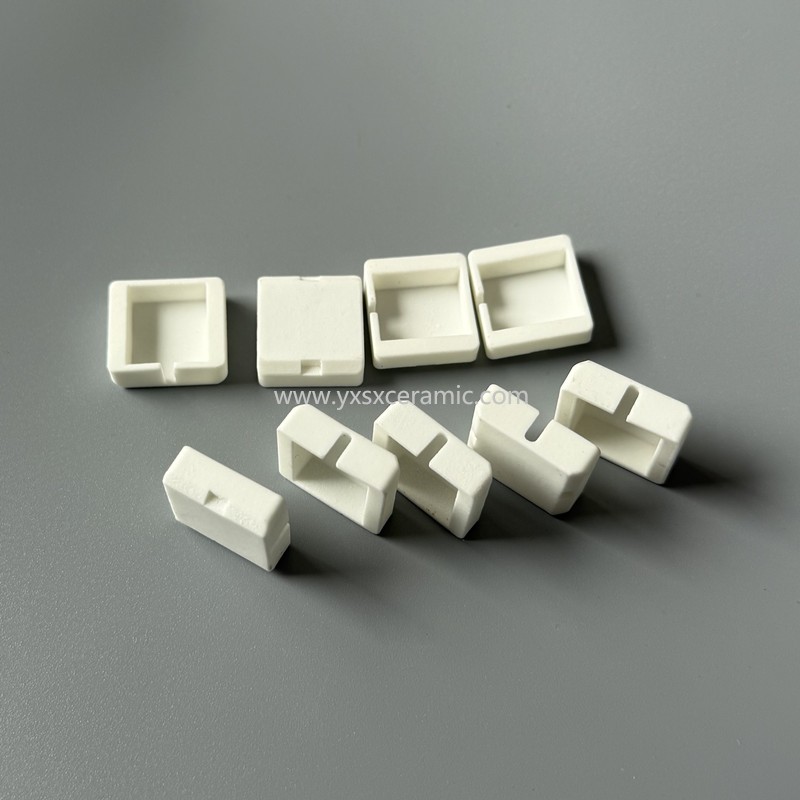

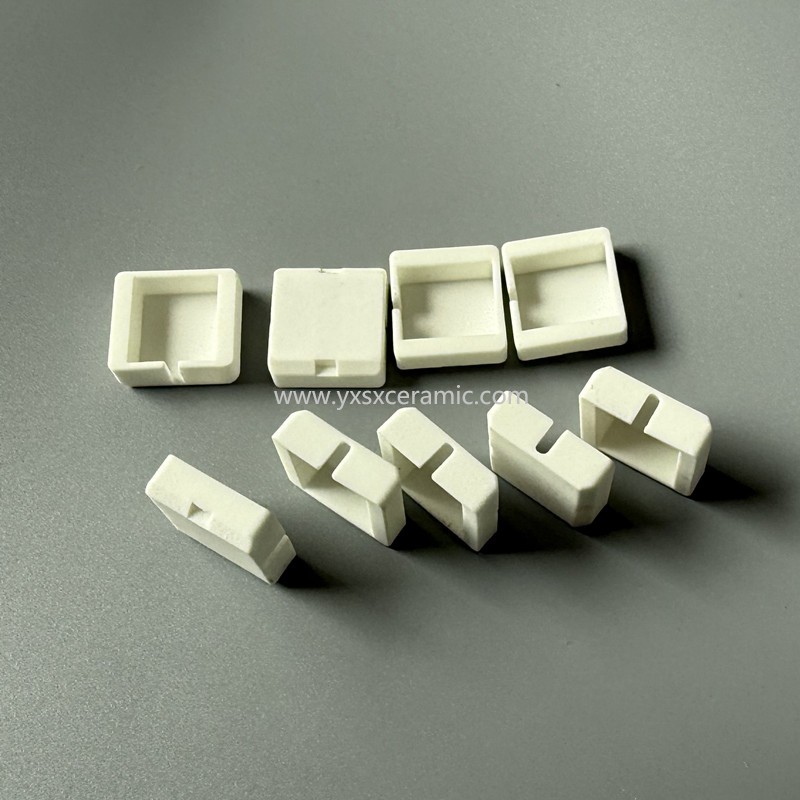

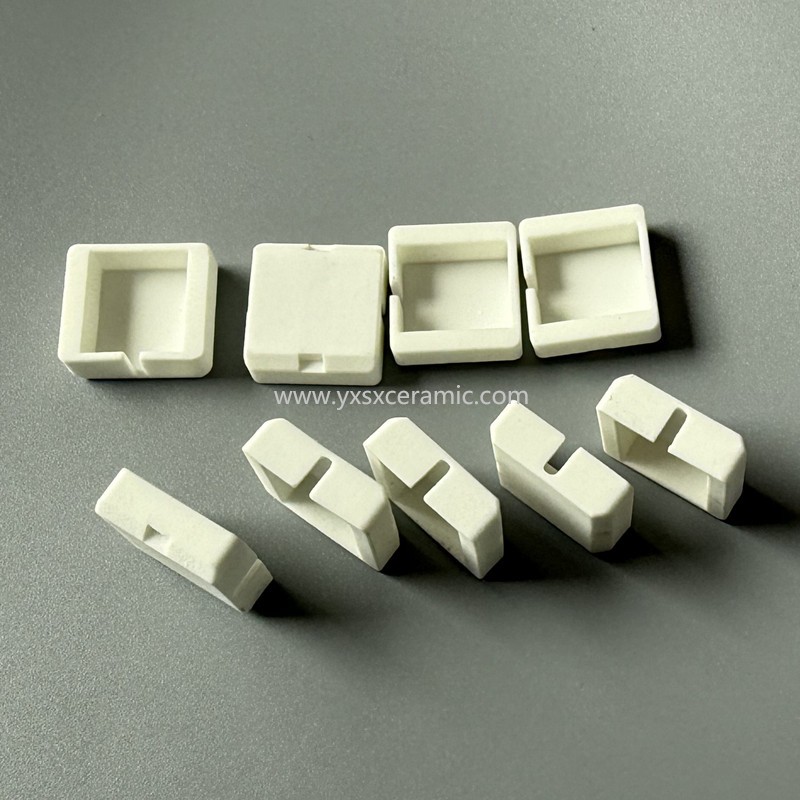

A ceramic resistor cover case is an enclosure made of ceramic material used to encapsulate resistors. It serves several important functions:   • Electrical insulation: Ceramic has excellent insulating properties, which can effectively prevent the resistor from coming into contact with other components or conductors, avoiding short - circuits and ensuring the safety and normal operation of the circuit.   • Heat dissipation: Ceramic materials have good thermal conductivity, which helps to transfer the heat generated by the resistor during operation to the outside, preventing the resistor from overheating and affecting its performance or even being damaged.   • Mechanical protection: It can protect the resistor from mechanical damage such as impact, vibration, and abrasion, especially in harsh environments such as automotive and industrial applications.   • Environmental protection: The ceramic cover case can isolate the resistor from the external environment, preventing it from being affected by moisture, dust, and corrosive gases, thus improving the stability and service life of the resistor.   Ceramic resistor cover cases are commonly used in high - power resistors, such as cement resistors. They are usually available in various shapes and sizes to accommodate different types and power ratings of resistors.

  ceramic resistor cover is a protective and insulating enclosure made primarily from high-performance ceramic materials (usually alumina oxide) designed to house and shield resistive elements in electrical and electronic systems. The ceramic resistor case combines excellent electrical insulation, high thermal stability, and mechanical robustness, making it widely used in high-power, high-temperature, and high-voltage applications.
